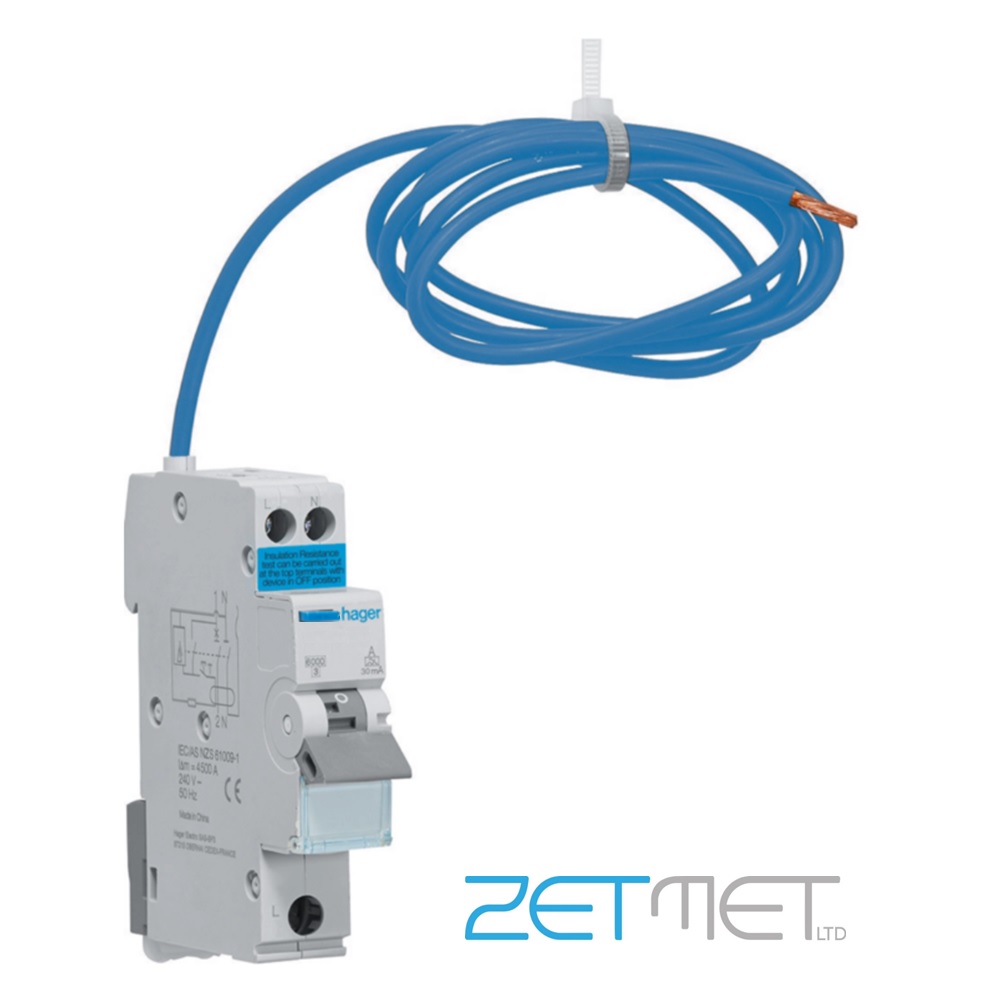

Hager ADB932R 32 Amp B Curve Single Pole 1 Module 30mA 6kA Type A Bi-Directional RCBO

Designed for DIN rail mounting in Hager domestic consumer units each RCBO combines the overcurrent functions of an MCB with the earth fault functions of an RCCB meaning they can help to protect electrical circuits from damage. As part of the reduced height range it provides increased wiring space whilst the removal of the earth lead means a faster, tidier install in addition to making testing quicker and easier. Additionally, the bottom rail DIN clip allows removal from a consumer unit without the need to remove the busbar. This is the Hager ADB932R 32 Amp B Curve Single Pole 1 Module 30mA 6kA Type A Bi-Directional RCBO.

Type A RCBO’s are able to detect AC (Alternating Current) and pulsating DC (Direct Current) components. Furthermore, being a Bi-Directional device means that is able to detect faults regardless of the current direction. This helps to future-proof installations involving renewable energy systems such as EV chargers and solar panels, where power flows in both directions and is fed back to the grid.

*This is the direct replacement for the Hager ADA332G*

Dimensions 85mm x 17.7mm x 70mm (H x W x D).

A range of Hager products such as RCBO’s and Miniature Circuit Breakers are available from Discount Electrical Supplies at discounted prices. View the brand new compact RCBO’s with a reduced height and earth lead removal for an easier installation. We promise to always supply our customers with the best products from leading manufacturers. This guarantees that each product is brand new and genuine!
