EV Charging Station

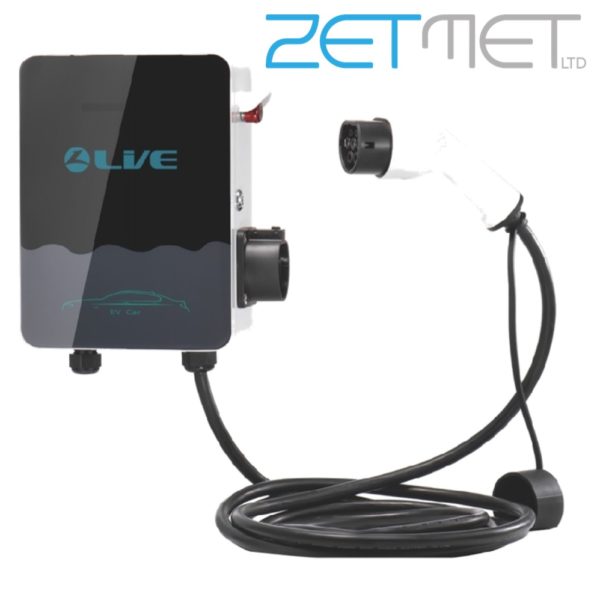

Live Electrical LEVCS-7 Pro Earth 7kw 32A AC Electric Vehicle (EV) Charging Station
Live Electrical branded EV charging station, provides a cost-effective solution for charging electric vehicles with on-board chargers. Suitable for wall or column installation (sold separately), each unit has an input voltage of 220V AC. Adopts a 4.3 inch display screen which can set the charging mode. The main control board uses a single-chip microcomputer with an embedded operating system. Constructed from sheet metal, which is part of the ABS plastic structure. This is the Live Electrical LEVCS-7 Pro Earth 7kw 32A AC Electric Vehicle (EV) Charging Station.
- Input Voltage: 220V AC (50Hz)
- Output Voltage: 220V AC
- Maximum Output Current: 32A
- Measurement Accuracy: Level 0.5
- Electrical Index: >11
- Working Temperature: -25°C to +50°C
- IP54 Rated
- The charging mode is divided into automatic charging and charging mode
- There are four types of time, choice of charging amount, and choice of charging power (RS-485 networking can be reserved)
- Communication interface, and provides options for GPRS, 4G and other networking methods
- Single-phase electronic electric energy meter is used for electrical metering, and communicates with the main control board through the RS-485 interface
- Adopts non-contact smart card reader to read IC card related information and communicate with main control board through RS-485 interface
- The main control board background program performs the identity identification, user information recording and charging
- Incoming switch adopts a switch with leakage protection function, and installs an emergency stop button
Zetmet Limited offers cheap electrical supplies online. We are proud to stock a range of the most popular Live Electrical products, such as RCBO’s, MCB’s, Consumer Units and their latest EV car chargers. By providing a quality product at discounted prices, many people are making the switch to Live Electrical.
